Humber Bay Shores 320-Unit Tower Hydronic Riser Flush

A documented project record from Condo HVAC Repair Toronto. A 2008 Humber Bay Shores lakefront tower was quoted $800K+ for riser replacement by two prior consultants. Our chemistry-based diagnostic showed heavy mineral scale but zero corrosion. A 10-day chemical descaling restored loop pressure for $42,800 and extended riser life 15+ years.

By The Condo HVAC Repair Toronto Crew

$42,800 CAD 2 weeks (3 days diagnostic + 10-day flush + 2 days pump replacement) 320 suites

Chemical descaling cart connected to the Humber Bay building loop

Project Record

Project Attributes

Scope: 10-day chemical flush of 18 vertical risers plus 2 Grundfos primary circulator pump replacements
Price: $42,800 CAD
Payment: 25% diagnostic approval, 50% flush completion, 25% at sign-off
Lead time: 3 weeks from signed contract
On site: 2 weeks (3 days diagnostic + 10-day flush + 2 days pump replacement)
Client: Property manager + condo corporation (2008 tower)
Crew: Elena Vargas (Ops Mgr) + 3 flush technicians + chemistry lab
Equipment: Original 18-stack vertical hydronic risers + Grundfos primary circulators
Neighbourhood: Humber Bay Shores
Building: 320 suites, 2008 construction

The Challenge

A 2008 Humber Bay Shores lakefront tower with 320 units served by 18 vertical hydronic risers was showing advanced scale buildup. The loop ran 20 psi below design pressure and primary pumps were working at 70 percent of nameplate to compensate.

Two prior consultants quoted riser replacement at $800K+. The condo corporation wanted a chemistry-based second opinion before committing to that capital expense.

Results

Water hardness dropped from 420 ppm to 85 ppm (90% reduction).
TDS dropped from 1,850 ppm to 420 ppm (77% reduction).
Loop pressure restored to design within 24 hours of pump commissioning.
$42,800 total vs $800K+ replacement quote = 95% capital preservation.
Riser service life extended 15+ years with annual chemistry monitoring program.

How We Ran It

1

Three-day chemistry diagnostic

Loop water sampled at 6 points for TDS, pH, chloride, iron and hardness. Visual riser inspection at 4 access ports spanning the full height. Primary pump amp draw measured against nameplate.
2

Diagnosis: scale, not corrosion

Water hardness 420 ppm, TDS 1,850 ppm, zero corrosion products, zero pitting visible. Risers structurally sound. Chemical descaling could restore loop capacity, no replacement required.
3

Ten-day inhibited flush

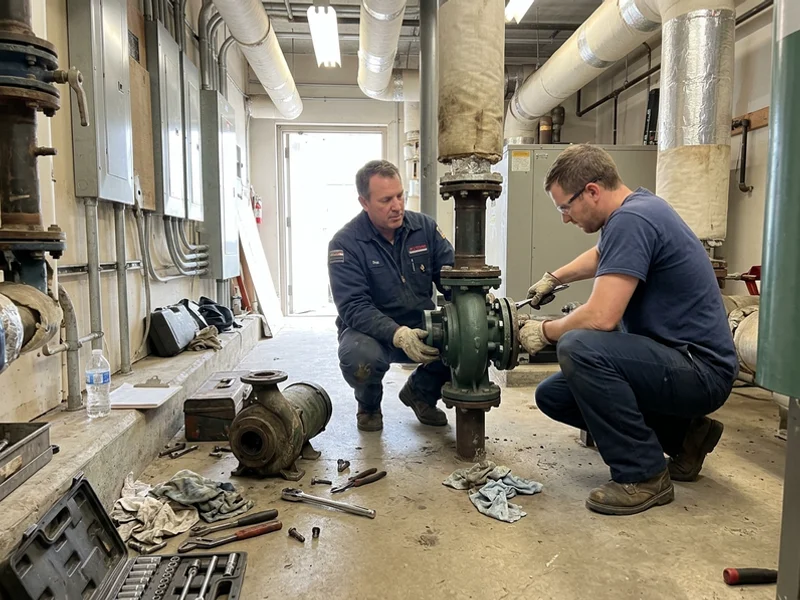

Full-building loop flushed over 10 days with inhibited descaler. Two Grundfos primary circulators replaced on condition basis. Pre- and post-flush chemistry documented at all 6 sample points.
4

Weekend pressure test and monitoring plan

Post-flush pressure test over a Friday-Sunday window with design pressure restored within 24 hours. Written 15-year chemistry monitoring plan delivered for ongoing scale prevention.

On Site

Project Photos

Click any photo to enlarge it.

"The scale report Elena delivered showed exactly where the loop was choking. The real win was proving the riser could run another 15 years instead of being replaced."

Marcus H., Property manager, Humber Bay Shores
